6 CHANNEL 120W RMS MIXER AMPLIFIER
Mixer amplifier giving 120w RMS of output power featuring 6
mic/line inputs. Switchable VOX priority on Mic channel 1 and
2. All input channels are switchable between line and balanced
mic and feature switchable phantom power. Microphone
connections are by combination XLR/6.3mm stereo sockets.
Features:
- 6 universal inputs XLR/Jack/RCA
- Electronically balanced inputs
- Switchable phantom power +48Vdc
- VOX priority channels 1 & 2
- 8 ohms, 16 ohms and 70V, 100V line
outputs
- Peak and signal LEDs
- Bass and treble controls
- Chime function on channel 1
- 2U 19" rack mountable
Specification:
| Power:Mains |
230Vac, 50Hz |
| Power:Battery |
24Vdc (8A) |
| Frequency response |
100Hz - 10kHz (±3dB)
|
| Output power:Max. |
160W |
| Output power: RMS < 2%
T.H.D |
120W |
| DC power |
92W |
| Input
impedance:Return |
10k ohms |
| Signal to noise ratio |
>92dB |
| Input impedance:Mic |
1.8k ohms |
| Input impedance:Line |
10k ohms |
| Input sensitivity:Mic
(balanced) |
1.5mV (-56.4dBV) |
| Outputs:Speaker |
8 ohms, 16 ohms, 70V &
100V |
| Input sensitivity:Mic
(unbalanced) |
26mV (-31.7dBV) |
| Output:Line |
1V @ 600 ohms |
| Input sensitivity:Line
(balanced) |
300mV (-11.37dBV)
|
| Input
sensitivity:Return |
1V (0dBV) |
| Dimensions |
425 x 88 x 230mm |
| Weight |
10kg |
Price:
£199.95
4 CHANNEL 120W RMS MIXER
AMPLIFIER

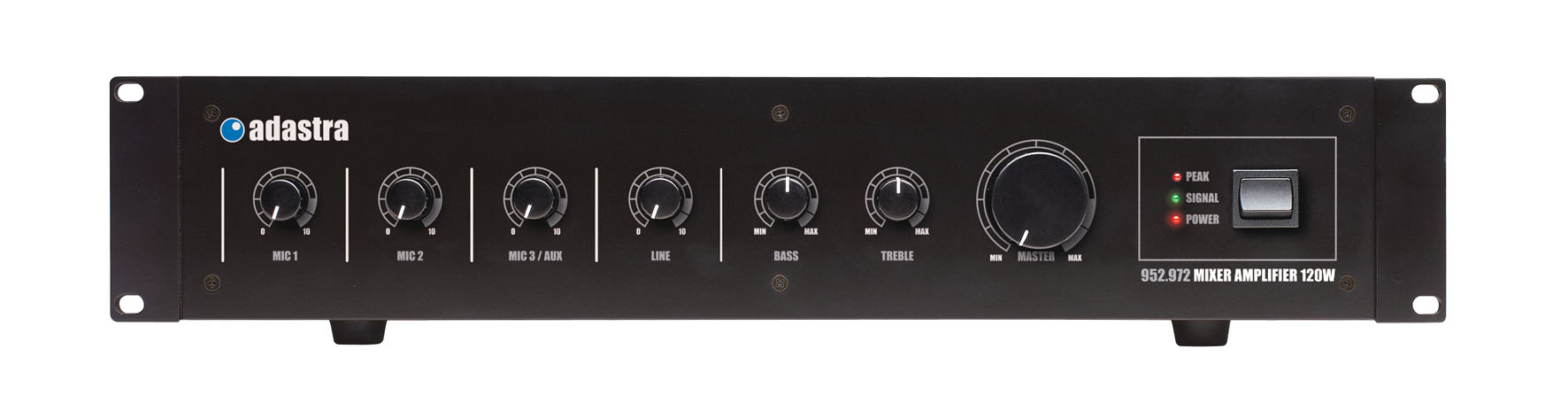

(As picture
above, but with four input volume controls instead of
six)
This high quality
4-channel mixer amplifier offer 120w RMS of output power,
and features 3 microphone and 1 line input. Microphone channel
1 offers a balanced XLR input with switchable VOX priority,
Microphone channel 2 and 3 offer an unbalanced 6.3mm jack
input with channel 3 being switchable to line level to allow
an auxiliary input. Channel 4 is a Line input with RCA phono
connection. The mixer also offers a master dual EQ allowing
adjustment of the bass and treble frequencies.
Features:
- Maximum output power 160W
- 4 input channels
- Channel 1 electronically balanced
- Channel 3 Mic/Aux switchable
- Switchable phantom power +21Vdc
- VOX priority channel 1
- 8 ohms and 100V line outputs
- Bass and treble controls
- 2U 19" rack mountable
- Peak and signal LEDs
- Mains and battery
operation
Specification:
| Power:Mains |
230Vac, 50Hz |
| Power:Battery |
24Vdc (8A) |
| Frequency response |
100Hz - 12kHz (±3dB) |
| Output power:Max. |
160W |
| Output power: RMS < 2%
T.H.D |
120W |
| Signal to noise ratio:Mic |
>70dB |
| DC power |
92W |
| Signal to noise ratio:Line |
>75dB |
| Input impedance:Mic |
1.8k ohms |
| Outputs:Speaker |
8 ohms & 100V |
| Output:Line |
1V @ 600 ohms |
| Input sensitivity:Mic 1
(balanced) |
1.5mV (-56.4dBV) |
| Input sensitivity:Mic 2
(unbalanced) |
1.5mV (-56.4dBV) |
| Input sensitivity:Mic 3
(unbalanced) |
1.5mV (-56.4dBV) |
| Input sensitivity:Line
(unbalanced) |
300mV (-10.4dBV) |
| Input sensitivity:Aux
(unbalanced) |
300mV (-10.4dBV) |
| Dimensions |
425 x 88 x 230mm |
| Weight |
10kg |
Price: £149.95
|
|
