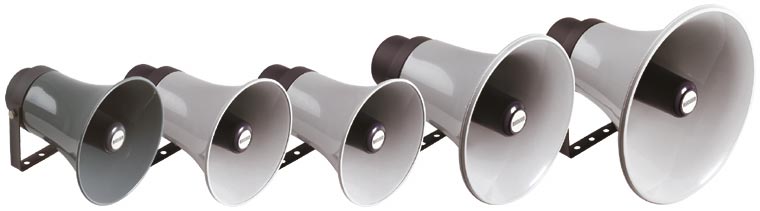

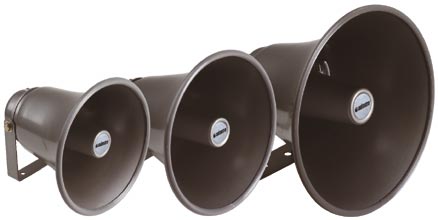

Home  Amplifiers  Microphones  Speakers  Stands  PA Systems  Accessories  Driver Units  Happy Customers! Technical Information  Contact Us                                 952.079   Discontinued     952.082            952.085               952.099 HEAVY DUTY ROUND HORN SPEAKERS A long established range of heavy duty, high quality circular PA horn speakers. Made from virtually indestructible ABS material offering maximum protection against shock and weather making them ideal for mounting in extreme outdoor conditions; IP rating 65. All horns are fitted with a sturdy, 270° adjustable mounting bracket and a 60cm length of double insulated connecting cable. All models are fitted with high quality aluminium voice coils which offer high acoustical properties and reliability. 100V line models have high quality line matching transformers fitted into a sealed rear housing with wattage tappings selectable by an integral rotary switch. 952.079 Discontinued 952.082 952.085 952.099 Power rms 15W 10W 15W 25W 30W Power max 23W 15W 23W 38W 45W Impedance 8 ohms 1k, 1.67k, 2k, 4k, 8 ohms 670, 1k, 2k, 4k ohms 400, 500, 670, 1k, 2k ohms 330, 400, 500, 670, 1k, 2k ohms Tappings - 10, 7.4, 5, 2.5, 1.25W 15, 10, 5, 2.5W 25, 20, 15, 5W 20, 25, 20, 15, 10, 5W Freq. response 275Hz, 7kHz (±3dB) 300Hz - 13kHz 275Hz - 7kHz (±3dB) 250Hz - 10kHz (±3dB) 240Hz - 10kHz (±3dB) SPL @ 1kHz, 1W, 1m 106dB 105dB 106dB 108dB 108dB SPL @ 1kHz, rated, 1m 118dB 115dB 118dB 112dB 123dB Dimensions 240 x 205mmØ 252 x 185mmØ 273 x 205mmØ 310 x 270mmØ 315 x 310mmØ Weight 1.42kg 1.5kg 1.78kg 2.34kg 2.39kg Price:      £25.95                                                £36.95        £47.95           £52.95         952.079      952.082    952.085    952.099                                          952.237            952.234                952.231 LOW IMPEDANCE HORNS An all metal range of low impedance round PA horns for general purpose and contract industrial installations. Made from aluminium and fitted with sturdy steel adjustable mounting brackets and a length of good quality two core speaker cable. 952.237 952.234 952.231 Type Low impedance Low impedance Low impedance Power rms 15W 25W 40W Impedance 8 ohms 8 ohms 8 ohms Frequency response 300Hz - 8kHz 300Hz - 8kHz 250Hz - 6kHz SPL @ 1kHz, 1W, 1m 100dB 107dB 106dB Dimensions 200 x 210mmØ 245 x 245mmØ 288 x 312mmØ Weight 850g 1.1kg 1.9kg Price:           £19.95       £24.95       £29.95    952.237    952.234    952.231          952.204     952.196     952.199       952.201 PA REFLEX HORNS WITHOUT DRIVER UNITS General purpose, standard industrial aluminium horn flares. Fitted with robust adjustable mounting brackets and rubber protective edge. Standard 13/8" x 18tpi thread accepts standard fitting driver units. 952.196 952.199 952.201 952.204 Length 266mm 300mm 370mm 255mm Type Round Round Round Rectangular Dimensions 335mmØ (14") 405mmØ (16") 520mmØ (20") 320 x 220mm Weight 1.4kg 1.5kg 1.9kg 1.4kg   Price: £26.95  £29.95  £41.95  £23.95        952.204    952.196    952.199     952.201     Driver units for these speakers can be found HERE               952.095          952.098             952.201                952.248 HEAVY DUTY RECTANGULAR HORN SPEAKERS A proven and long established range of heavy duty, high quality rectangular PA horn speakers. Made from robust, virtually indestructible ABS material offering maximum protection against shock and weather making them ideal for mounting in extreme conditions, whether on vehicles, boats or in exposed outdoor installations. IP rating 65. All are fitted with a sturdy, 270° adjustable mounting bracket and a 60cm length of double insulated connecting cable. All models are fitted with high quality aluminium voice coils offering high acoustical properties and reliability. 100V line models have high quality line matching transformers fitted into a sealed rear housing with wattage tappings selectable by an integral rotary switch. 952.095 952.098 952.101 952.248 Power rms 15W 15W 25W 40W Power max 23W 23W 38W 60W Impedance 8 ohms 670, 1k, 2k, 4k ohms 400, 500, 670, 1k, 2k ohms 250, 330, 500, 1k, 2k ohms Tappings - 15, 10, 5, 2.5W 25, 20, 15, 10, 5W 40, 30, 20, 10, 5W Frequency response 275Hz - 7kHz (±3dB) 275Hz - 7kHz (±3dB) 250Hz - 10kHz (±3dB) 180Hz - 7kHz (±3dB) SPL @ 1kHz, 1W, 1m 106dB 106dB 108dB 112.5dB SPL @ 1kHz, rated, 1m 118dB 118dB 122dB 128.5dB Dimensions 250 x 145 x 270mm 250 x 145 x 290mm 300 x 180 x 315mm 400 x 200 x 420mm Weight 1.52kg 1.88kg 2.44kg 3.9kg Price:          £27.95         £42.95           £58.95             £74.95    952.095    952.098    952.101    952.248   Compact 8ohm 8watt horn speaker Compact but powerful 8ohm 8watt horn speaker disigned to fit in restricted spaces like under vehicle bonnets etc. Features: Material:                        ABS plastic ith adjustable metal bracket Colour:                          Black Dimensions:                 88 x 105mm SPL:                             104dB Impedance:                  8ohm Sensitivity:                    95dB @ 1m Power:                          8watts RMS Frequency response:  700-6000Hz Price: £8.95   Compact 8ohm 8watt horn speaker Compact but powerful 8ohm 8watt horn speaker for discreet installation. Features: Material:                             ABS plastic with metal bracket Colour:                               White Dimensions:                      136 x 125mm SPL:                                   108dB Impedance:                        8ohms Sensitivity:                          99dB @ 1m Power:                                8watts RMS Frequency response:        500-7000Hz Price: £9.95 HIGH PERFORMANCE BACKGROUND SPEAKER High quality 2-way speaker for indoor or outdoor use. Weatherproof speaker and cabinet makes these enclosures ideal for outdoor events, swimming pools, garden areas and marine or boat use. Available in white or black finish. Features: 13.1cm (5.25") Woofer and 1.25cm (0.5") Dome Tweeter 2 way speaker system with crossover network 5 / 10 / 20 / 40W 100V and 8 Ohms selected by rotary switch Weatherproofed IP35 UV protected ASTM D4329 Indoor/outdoor equalisation switch Gold plated binding posts Mounting bracket Individual colour gift box Supplied single Specification: Power max.    190W @ 8 ohms Power rms    65W @ 8 ohms Frequency response    110Hz - 20kHz SPL @ 1W/1m    86dB Weight    3.06kg Dimensions    280 x 180 x 140mm Price:  £39.95 Please select colour HEAVY DUTY COLUMN SPEAKERS High quality, heavy duty speakers suitable for indoor and outdoor use even in extreme weather conditions. The all metal extruded aluminium cases with cast aluminium top and bottom plates are fully dust and weatherproof, IP65 rated. Fitted with high quality 150mm (6") x 100mm (4") elliptical speakers which produce good clear sound and acoustical clarity. Supplied with strong mounting brackets and fitted with 100V line matching transformers. Wattage tappings are selected by an integral rotary switch on the rear panel. Fitted with a length of connecting cable.       952.170 952.173 Speakers 2 4 Power rms 15W 30W Power max 23W 45W Impedance 670, 1k, 2k, 4k ohms 300, 500, 1k, 2k ohms Tappings 15, 10, 5, 2.5W 30, 20, 10, 5W Frequency response 150Hz - 10kHz 150Hz - 10kHz SPL @ 1W/1m 94dB 97dB Dimensions 450 x 150 x 130mm 890 x 150 x 130mm Weight 4.5kg 7kg Price:                         £49.95       £79.95     952.170    952.173   PASSIVE MOULDED SPEAKER CABINETS A range of Skytec standard moulded cabinets, with tough yet lightweight ABS enclosures designed for the rigors of the modern PA system. Each enclosure has a trapezoidal design with easy carry handle, and top hat for stand mounting. This range gives exceptional punch and clarity, and is equally suited to music and speech. (Note: Model 170.148 requires 853.242 adaptor (Included) to fit standard 35mmØ pole). Optional Accessories: Protective carry case (view HERE ) Features: Lightweight ABS enclosure Coated paper cone, steel chassis and vented coil Built-in crossover Low impedance compression horn driver Trapezoidal design Rigging points Rigid steel grille Top hat with locking screw (Note: 27mmØ for 170.148) Easy carry handle Specification: Connector    Speakon® NL4 x 2 Impedance    8 Ohms System    Passive 2-way full range Tweeter    7.5cm (3")     170.148 170.151 170.155 170.159 Supplied Pair Single Single Single Top hat Base mounted 27mmØ Base mounted 35mmØ Base mounted 35mmØ Base mounted 35mmØ Frequency response 65Hz - 18kHz 55Hz - 18kHz 45Hz - 18kHz 40Hz - 18kHz Power rms 100W 150W 200W 300W Sensitivity 90dB (±3dB) 90dB (±3dB) 93dB (±3dB) 94dB (±3dB) Woofer 20cm (8") 25cm (10") 30cm (12") 38cm (15") Dimensions 407 x 293 x 234mm 495 x 355 x 260mm 580 x 425 x 300mm 685 x 445 x 350mm Weight 5.2kg 12kg 16kg 24kg Price:     £149.95pair  £99.95ea   £139.95ea  £179.95ea   170.148   170.151   170.155   170.159
